Triple Wave Beam Highway Barrier　Factory Direct Highway W-Beam Guardrail System – High-Performance Anti-Collision Road Safety　

Product Details

Place of Origin: Beijing, China

Brand Name: Roadsafe

Certification: CE

Model Number: HL

Payment & Shipping Terms

Minimum Order Quantity: 100pieces

Price: US$25-45pieces

Packaging Details: cartons

Delivery Time: 8-15days

Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability: 1000pcs/days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Name:	ROAD Highway Guardrail	Material:	Steel Q235 345
Reflector Color:	White、yellow Red Orange Customized	Sample:	Available
Usage:	Highway	Size Of W Beam:	Customized
POST:	U-shape , C-shape Post And Other's Customizable	Full Set:	All Accessories Included
Type:	Triple Wave Beam Highway Barrier

Product Name:	ROAD Highway Guardrail
Material:	Steel Q235 345
Reflector Color:	White、yellow Red Orange Customized
Sample:	Available
Usage:	Highway
Size Of W Beam:	Customized
POST:	U-shape , C-shape Post And Other's Customizable
Full Set:	All Accessories Included
Type:	Triple Wave Beam Highway Barrier

Description

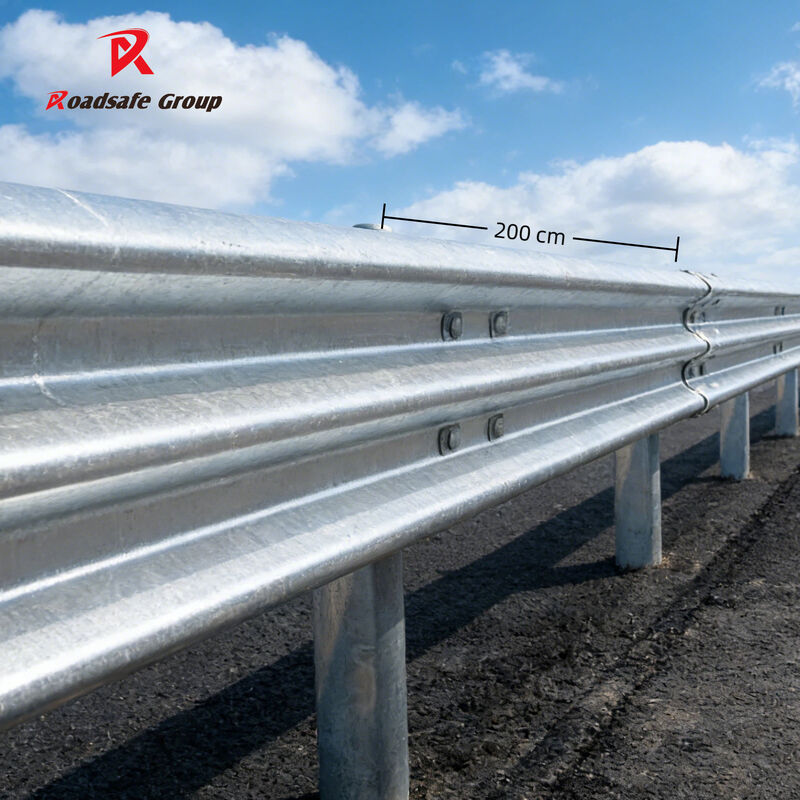

Triple Wave Beam Highway Barrier　Factory Direct Highway W-Beam Guardrail System – High-Performance Anti-Collision Road Safety　

W-Beam Highway Guardrail Barrier System BEIJING ROADSAFE Factory Direct Highway W-Beam Guardrail System – High-Performance Anti-Collision Road Safety Barrier

Advanced highway safety solution designed for maximum impact protection and durability in demanding environments.

Triple Wave Beam Highway Barrier　Factory Direct Highway W-Beam Guardrail System – High-Performance Anti-Collision Road Safety　 0

Product Specifications

Place of Origin	China
Barrier Board Size	432050685*3/4mm
Column Size	5x1301306mm
U-shape Spacer	36017876.6*6mm
U Post	183017876.6*6mm
Life Time	More than five years
Surface Treatment	Hot dipped galvanized
Certificate	Yes

Technical Details

Product Type: Two-Wave W-Beam Barrier
Material: Hot-rolled steel coils (Q235 / Q345 or other steel grades)
Standard Size: 4320 * 506 * 85 * 3.0 / 4.0 mm
Surface Treatment: Hot-dip galvanized
Zinc Coating Options: 550 g/m², 610 g/m², 1100 g/m², 1200 g/m²

Product Features
- High-Strength W-Beam Design
  Engineered with a classic W-profile to effectively absorb impact energy and reduce vehicle damage during collisions.
- Premium Steel Material
  Manufactured from high-quality Q235 / Q345 steel, ensuring excellent durability, load resistance, and long service life.
- Advanced Surface Protection
  Hot-dip galvanized or galvanized + powder-coated finish for superior corrosion and weather resistance in harsh environments.
- International Standards Compliance
  Meets AASHTO M180, EN 1317, and other relevant highway safety standards.
- Easy Installation & Maintenance
  Modular structure allows for fast installation, convenient replacement, and reduced maintenance costs.

Product Advantages

High Impact Resistance & Safety Performance: W-beam structure provides excellent energy absorption and vehicle redirection
Compliance with Multiple International Standards: Suitable for global highway and road safety projects
High-Quality Steel Material: Ensures high strength, toughness, and long service life
Superior Corrosion Resistance: Hot-dip galvanizing offers excellent protection against rust
Standardized Dimensions & Easy Installation: Compatible with common posts and accessories
Customizable Options Available: Steel grade, thickness, zinc coating, and dimensions can be customized

Applications

Highways and expressways
Urban roads and bridges
Mountain roads and curves
Roadside safety protection systems
Highway safety systems and sharp curves
Entrance/exit ramps and tunnel approaches
Accident-prone areas requiring enhanced vehicle containment

Engineered specifically for high-temperature climates and extreme desert conditions, making it ideal for infrastructure projects worldwide.

Product Gallery

✅ Three-Wave Plate Design (三波板波形护栏)
Stronger than traditional two-wave guardrails, offering higher impact resistance and improved energy absorption during collisions.

✅ High-Performance Anti-Collision Protection
Effectively reduces vehicle impact force, protects drivers, passengers, and roadside facilities.

✅ Premium Steel Material
Manufactured from high-quality galvanized steel with excellent corrosion resistance, suitable for long-term outdoor use.

✅ Factory Direct Supply
Competitive pricing, stable quality control, and reliable delivery directly from the BEIJING ROADSAFE factory.

✅ Wide Application
Ideal for highways, expressways, bridges, urban roads, and dangerous curves.

✅ International Standards Compliance
Designed and produced according to international road safety standards for durability and performance.
